RBSERIES

Our cobots are safe and convenient to use

RB
RB

Cooperating Robot with Your Coworkers

For Wide Range of Applications RB Series Lineup

To meet your specific needs, Rainbow Robotics offers a variety of RB series lines.

Securing high levels of performance

Rainbow Robotics develops and uses core components required in its cobots, such as actuators, encoders, brakes, and controllers, in-house.

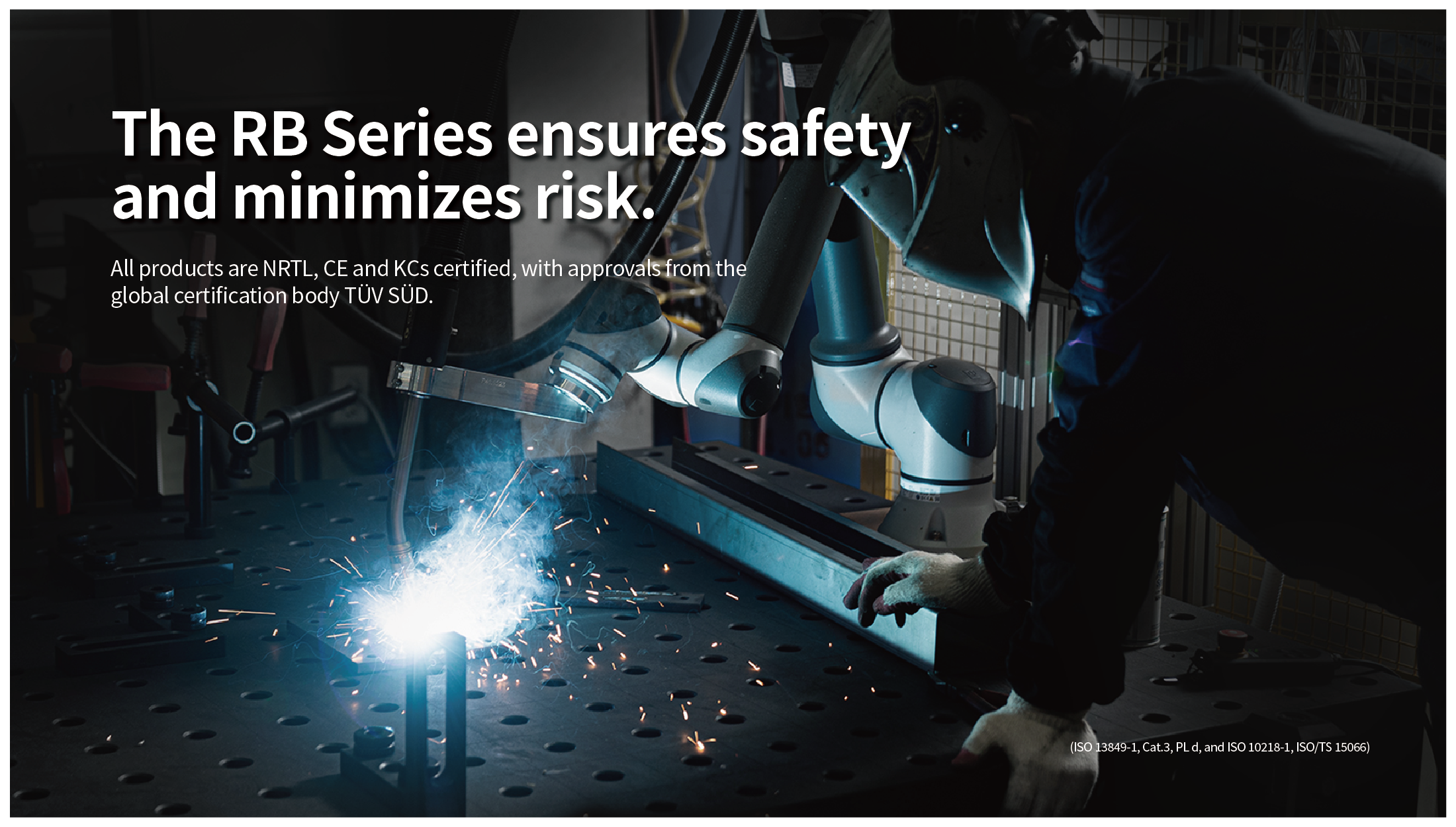

Safety Certification with TÜV SÜD

All products have the CE and KCs certifidations approved by the global certification body TÜV SÜD. (ISO 13849-1, Cat.3, PL d, and ISO 10218-1, ISO/TS 15066)

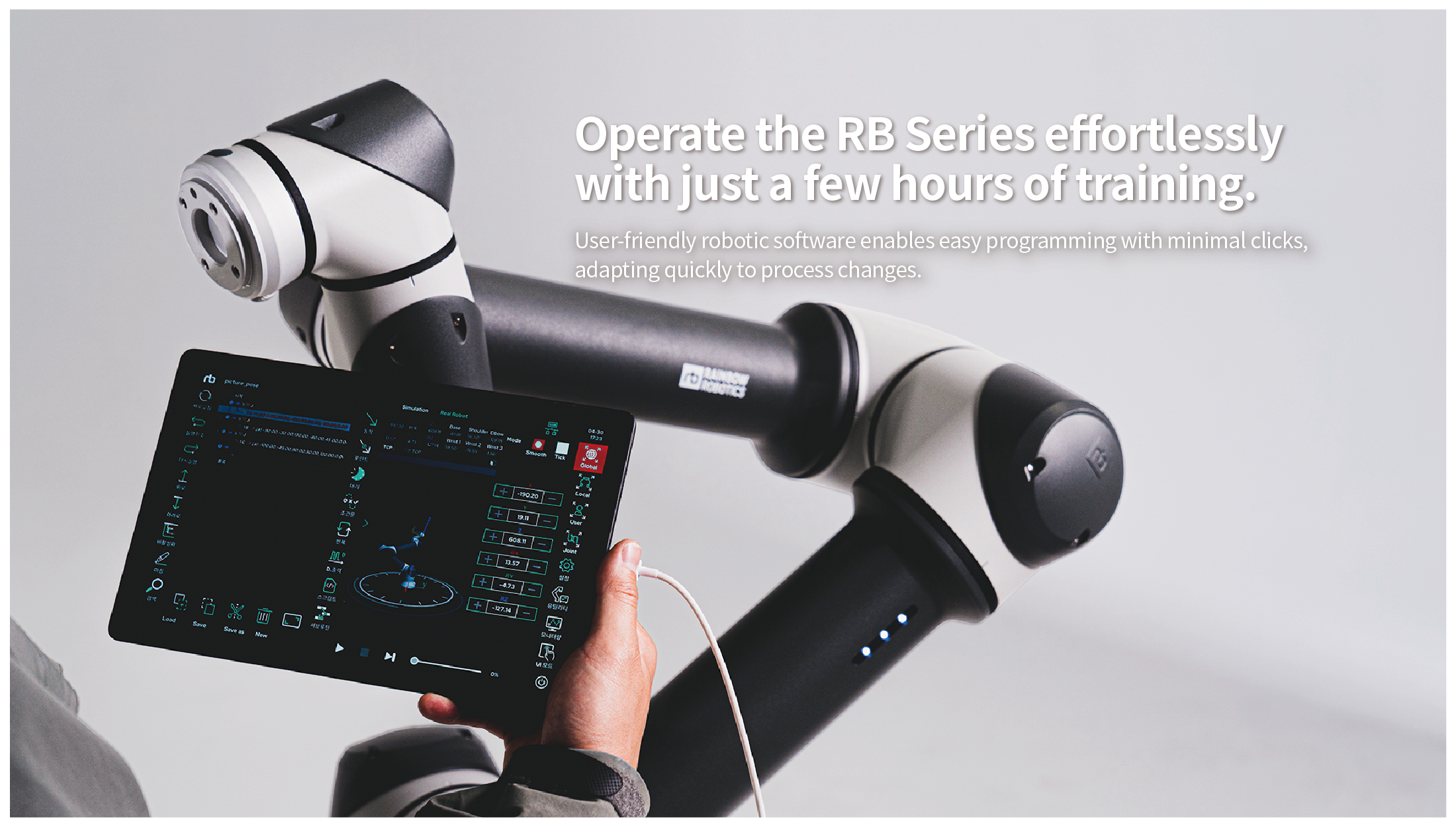

Software to boost user’s convenience

The RB series features a Linux-based, real-time robot operating system developed independently by Rainbow Robotics.

Case of RB series applications

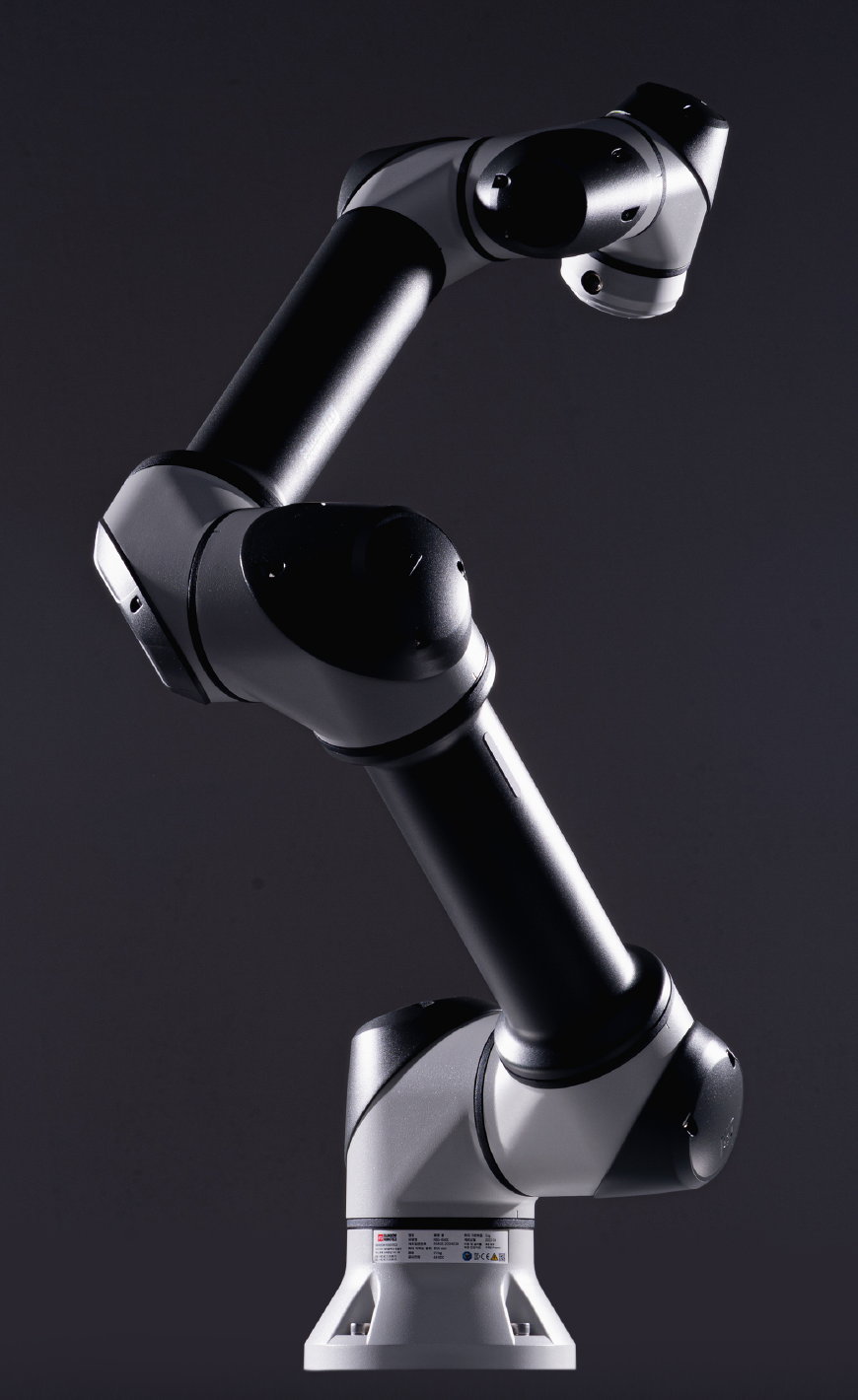

Specification

Cobot

  • RB3-730

    RB3-730

    Payload 3kg,
    Reach 730mm

    • Payload

      3kg

    • Reach

      730 mm

    • Repeatability

      ± 0.05 mm

    • Footprint

      Ø 128 mm

    • Materials

      Aluminum, plastic, and steel

    • Tool connector type

      M8 8-pin connector 2ea(12/24V, ~2A)

    • Cable length (Robot arm)

      5m

    • Weight

      11 kg

    • Operating environment

      IP 54 / 0-50 ℃

  • RB3-1200

    RB3-1200

    Payload 3kg, Reach 1200mm

    • Payload

      3kg

    • Reach

      1200mm

    • Repeatability

      ± 0.05 mm

    • Footprint

      ∅ 173 mm

    • Materials

      Aluminum, plastic, and steel

    • Tool connector type

      M10 12-pin connector (12/24V, 2A)

    • Cable length (Robot arm)

      5m

    • Weight

      22.4kg

    • Operating environment

      IP 66 / 0-50 ℃

  • RB5-850

    RB5-850

    Payload 5kg, Reach 927.7mm

    • Payload

      5kg

    • Reach

      927.7mm

    • Repeatability

      ± 0.05 mm

    • Footprint

      ∅ 173 mm

    • Materials

      Aluminum, plastic, and steel

    • Tool connector type

      M10 12-pin connector (12/24V, 2A)

    • Cable length (Robot arm)

      5m

    • Weight

      22kg

    • Operating environment

      IP 66 / 0-50 ℃

  • RB10-1300

    RB10-1300

    Payload 10kg,
    Reach 1300mm

    • Payload

      10kg

    • Reach

      1300mm

    • Repeatability

      ± 0.05 mm

    • Footprint

      ∅ 196 mm

    • Materials

      Aluminum, plastic, and steel

    • Tool connector type

      M10 12-pin connector (12/24V, 2A)

    • Cable length (Robot arm)

      5m

    • Weight

      37.1kg

    • Operating environment

      IP 66 / 0-50 ℃

  • RB16-900

    RB16-900

    Payload 16kg,
    Reach 900 mm

    • Payload

      16kg

    • Reach

      900mm

    • Repeatability

      ± 0.05 mm

    • Footprint

      Ø 196 mm

    • Materials

      Aluminum, plastic, and steel

    • Tool connector type

      M10 12-pin connector (12/24V, 2A)

    • Cable length (Robot arm)

      5m

    • Weight

      32 kg

    • Operating environment

      IP 66 / 0-50 ℃

Control box

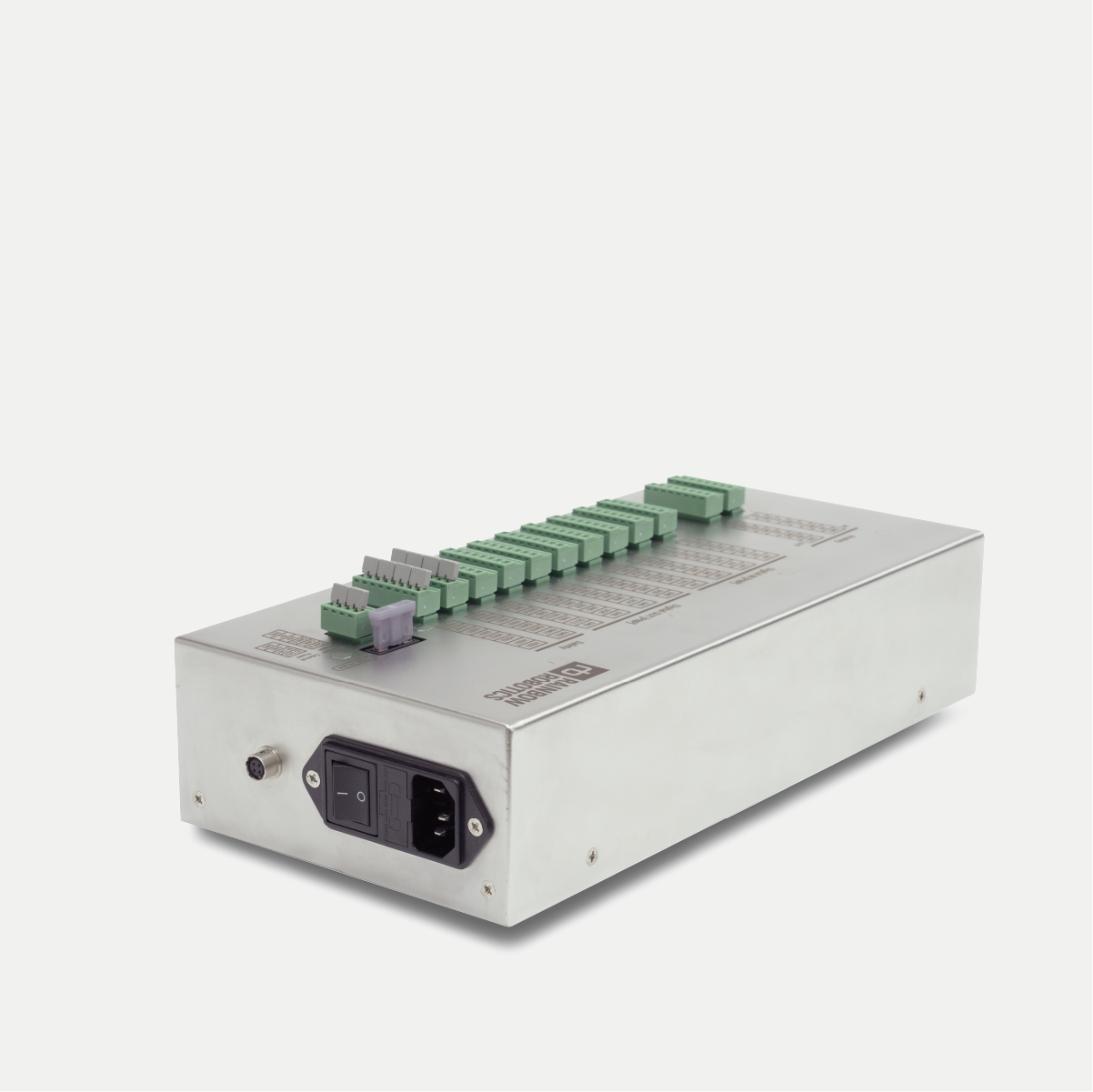

  • Standard control box

    Standard control box

    Control box basic type

    • I/O ports

      Digital input 16 (PNP)
      Digital output 16 (PNP)
      Analog input 4 (0~10V)
      Analog output 4 (0~10V)
      RS-232/422/485
      Ethernet (TCP/IP, MODBUS TCP, Control Script) Siemes S7, OMRON Fins, Mitsubishi MC, etc
      ※ I/O expansion modules available

    • Power source

      100-240V AC, 50~60 Hz

    • Size

      454 x 240 x 416.2 mm

    • Weight

      RB3-1200 / RB5-850 20.3 kg
      RB10-1300 22.2 kg

    • Materials

      EGI (electric galvanized steel sheet)

  • DC Control box

    DC Control box

    Suitable for Mobile Manipulators

    • I/O ports

      Digital input 16 (PNP)
      Digital output 16 (PNP)
      Analog input 4 (0~10V)
      Analog output 4 (0~10V)
      RS-232/422/485
      Ethernet (TCP/IP, MODBUS TCP, Control Script) Siemes S7, OMRON Fins, Mitsubishi MC, etc
      ※ I/O expansion modules available

    • Power source

      19~72V DC

    • Size

      380 x 182 x 270 mm

    • Weight

      11.5kg

    • Materials

      SUS 304

    • Remarks

      Four fixing brackets provide
